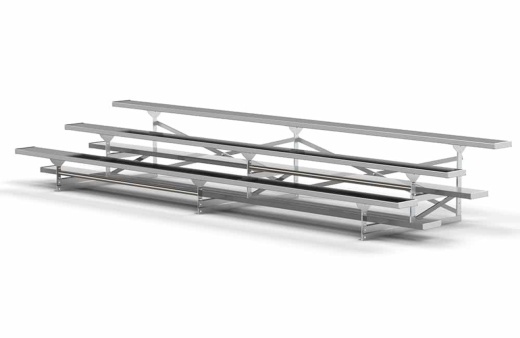

Product Description 3 Row 30 Seat Aluminum Bleacher
This popular aluminum bleacher comfortably seat 30 people and is perfect for outdoor sporting events. By adding a tip and roll kit, this versatile bleacher can be used indoors as well. We like this bleacher because the seats are 11.5" wide instead of the standard 10" wide and cost just about the same. These portable aluminum bleacher frames are available with the standard 1 3/4" x 1 3/4" x 3/16" steel angles or an optional 2 x 2 x 3/16 inch 6061-T6 alloy aluminum. Available in a standard 6" rise, these bleachers are also available in a 7" rise. The rise is the height of the next seating height over the previous row. Another option is the Top and Roll feature where 5" rubber castor are mounted on the back make this bleacher easily movable for indoor applications
- Seating Capacity: Seats 30
- Bleacher Rows: 3 Row
- Bleacher Length: 15' Long
- Bleacher Frame: Aluminum, Galvanized Steel
- BL Series Angle Frame:
- Aluminum frames are fabricated from 2 x 2 x 3/16 inch 6061-T6 alloy aluminum angles using a punched and bolted type construction for maximum strength and safety. All main frame components are pre-assembled with large 1/2 inch diameter bolts, lock washers and nuts. This bolted aluminum frame provides strong joints that will not develop weld cracks.
- Galvanized Steel frames are fabricated from 1 3/4" x 1 3/4" x 3/16" steel angles then hot dip galvanized after fabrication. The main frame components are welded at our factory and shipped with flat bar braces which are bolted in place on site by the customer.
- Bleacher Rise: 6 Inch Rise, 7 Inch Rise
- Style :W/Aluminum Planks
- Tip-N-Roll :No, Yes
- Bleacher Accessories; Tip & Roll Mover System, Custom Colors, Bleacher Wraps
- Bleacher Features: Quick Setup
- Height Last Row:6" Low Rise – 24" Inch, 7" Std. Rise – 30 Inch
Note
Price and specifications subject to change without notice.
