4 Row Aluminum Bleacher | 15' Length | 40 Seat

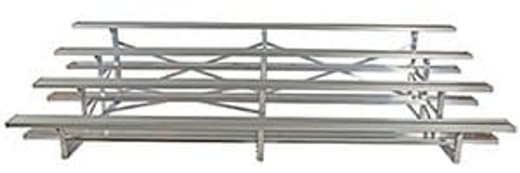

Product Description 4 Row 40 Seat Aluminum Bleacher

This 4 row portable aluminum bleacher seats 40 people and is a great choice for school gyms, dance schools, pre-schools, pools and many other places where small numbers of parents and children gather. If you need to be able to move them out of the way easily and store them choose the Tip-N-Roll option (call to request). The aluminum frame is a popular and lightweight choice, if you prefer the ruggedness of a steel frame, ask about the galvanized steel option.

This aluminum bleacher is 180" long x 84" deep and is only 30" tall. Because it is 30" tall it does not require a guard rail, however we recommend you check with your local code because there may be requirements for ADA Spaces.

Specifications:

• Seating Capacity: Seats 40
• Bleacher Rows: 4 Row
• Bleacher Length: 15' Long
• Bleacher Frame: BL Series Angle Frame
• Aluminum frames are fabricated from 2 x 2 x 3/16 inch 6061-T6 alloy aluminum angles using a punched and bolted type construction for maximum strength and safety. All main frame components are pre-assembled with large 1/2 inch diameter bolts, lock washers and nuts. This bolted aluminum frame provides strong joints that will not develop weld cracks.
• Galvanized Steel frames (by request) are fabricated from 1 3/4" x 1 3/4" x 3/16" steel angles then hot dip galvanized after fabrication. The main frame components are welded and shipped with flat bar braces which are bolted in place on site by the customer.
• Bleacher Rise: 6 Inch Rise.
• Plank Type: Aluminum
• Tip-N-Roll: No.
• Railings: No
• Bleacher Accessories: Tip & Roll Mover System, Custom Colors, Bleacher Wraps
• Bleacher Features: Quick Setup
• Height Last Row: 6" Low Rise – 30".
• Note: Check your local code requirements. Price and specifications subject to change without notice.

6 inch Rise Bleacher frames have wide seat cleats which are designed for 2 x 12 inch seat planks. First row seat 12 inch high, 7.5 feet long 3 and 4 row bleachers are also available. Kay Park's new 3 and 4 row bleachers are exempt from current guardrail rules because they are less than 30 inch high. No Guardrails or Aisles needed. Check your local code requirements Price and specifications subject to change without notice.
