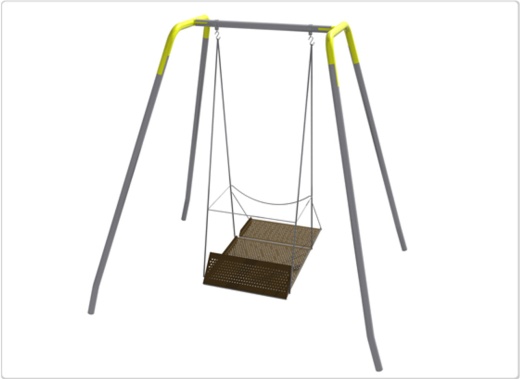

Product Description ADA Platform Swing & Frame
A complete system consisting of 12 gauge punched steel 32" x 38" wheelchair platform and heavy duty 13 gauge 2 3/8" OD top rail and legs. Swing end and center fittings are a 7 gauge 2 7/8" OD flo-coated tubing coated with powder-coated paint. All steel is FloCoat Galvanized, triple coat corrosion protection. System is designed for single use with an 800 lb total capacity. Pull chain allows for self propulsion.
- Complete frame and platform swing designed for wheelchair and occupant.
- Pull chain allows for self propulsion.
- Wheelchair platform fabricated from 12 gauge steel.
- Total weight capacity is 800 pounds.
- Platform Dimensions: 32" W x 38" L x .75" H
- Dimensions: 8' W x 8' D x 8' H.
- Use Zone: 21' W x 32' L.
